Your Complete Grab Rail Installation DIY Guide

You're probably here because the bathroom looks good on paper, but one detail is bothering you. You want proper support in the shower, beside the toilet, or near the bath, and you don't want the finished room looking like a hospital fit-out.

That's a fair concern. In Melbourne renovations, I see it all the time. Homeowners want a clean vanity line, tidy tile joints, slim tapware and frameless glass, then freeze when grab rails enter the conversation. They assume safety will wreck the look. It doesn't have to.

A well-planned grab rail installation should do three things at once. It should feel solid under load, meet Australian requirements, and sit naturally within the bathroom design. If any one of those is missing, the job isn't right.

Why a Secure Grab Rail Is More Than Just a Handle

A wet tile floor doesn't give you much warning. One heel slips, your weight shifts sideways, and suddenly you're grabbing for anything within reach. If the nearest fitting is a towel rail, a vanity edge, or a shower screen, you've got a problem.

That's why I never treat grab rails as decorative accessories or add-ons for later. In real bathrooms, they're part of the safety system. They belong in the same conversation as waterproofing, ventilation, lighting and slip resistance.

In Australia, falls among older adults are a leading cause of injury, and a 2013 Australian systematic review found that installing grab rails and other bathroom modifications reduced falls among community-dwelling older people by roughly 27% in intervention homes compared with controls, as noted in this Australian grab rail safety summary. That matters because a rail only helps if it's there before the near-miss becomes a hospital trip.

Safety first, but not at the expense of the room

The mistake I see most often isn't just poor fixing. It's late-stage thinking. Someone finishes the tiles, chooses the mirror, signs off on the shower screen, then decides to “just add a rail somewhere”. That usually leads to awkward placement, visible compromise and a result that looks bolted on.

A better approach is to plan the rail as part of the layout. In a modern renovation, that can mean lining a horizontal rail up with the vanity front, tucking a finish in with the tapware selection, or placing support points where movement naturally happens rather than where they're easiest to drill.

Practical rule: If a person will ever need support at a transition point, stepping in, stepping out, sitting down or standing up, that's where the rail belongs.

For households planning for ageing in place or improved accessibility, this thinking usually sits alongside wider layout changes such as hobless showers, wider clearances and easier toilet transfers. If that's the direction you're considering, these handicap bathroom remodel ideas are worth reviewing before finalising the fit-off.

What works and what fails

What works is simple. A rail fixed into proper structure, set at a useful height, and placed where the hand naturally goes.

What fails is just as predictable. Rails mounted for appearance only. Rails fixed into weak wall linings. Rails placed where they look symmetrical but don't help the body move safely.

A secure grab rail isn't just a handle. It's a load-bearing safety fitting. Treat it that way and it can blend into a stylish Melbourne bathroom without looking clinical.

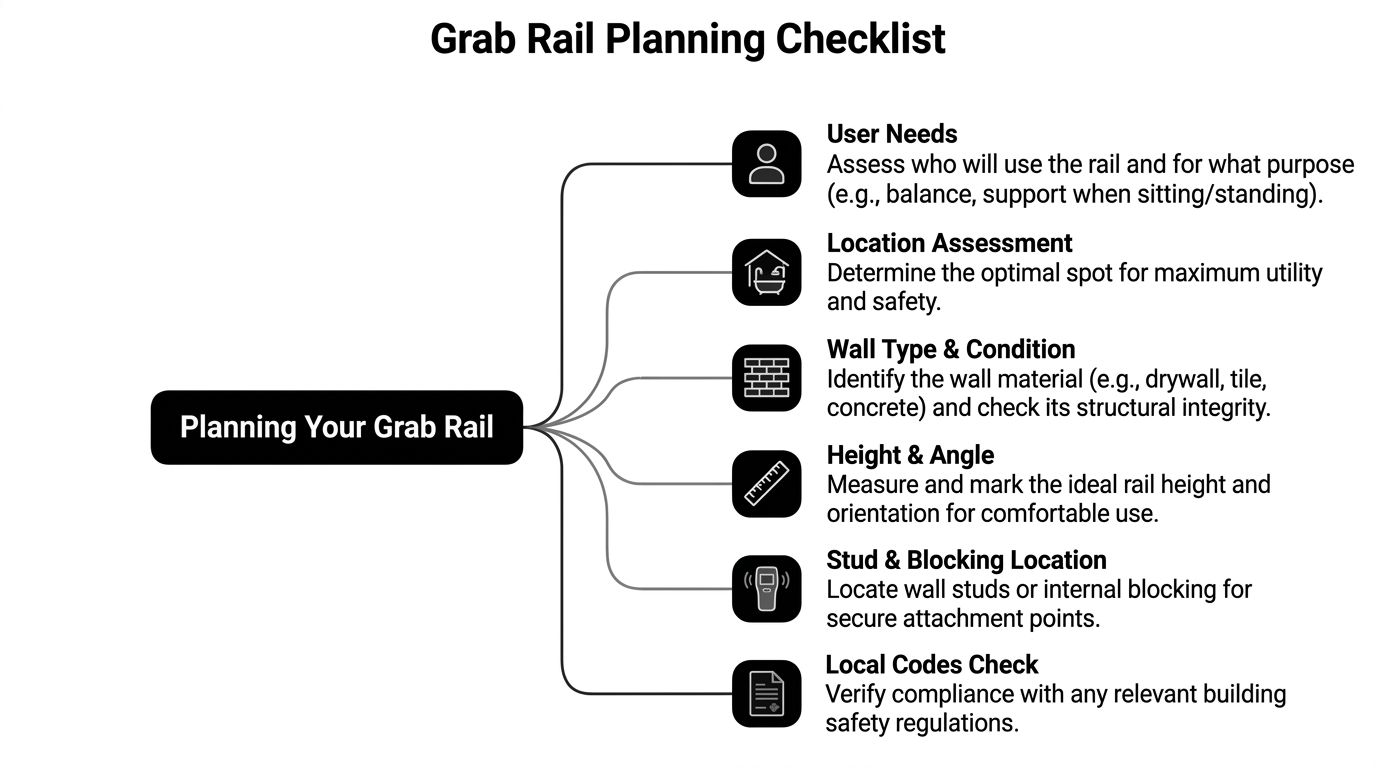

Planning Your Installation Site and Positioning

The best grab rail installation starts before you buy the rail. Placement decides whether the rail feels natural or awkward, helpful or useless. If you get the position wrong, even a strong fixing won't save the job.

Start with movement, not products. Watch how the person uses the room now. Where do they pause? Where do they turn? Where do they need support while lowering, rising or stepping over a threshold? That tells you more than any packet on a shelf.

Pick the actual support zones

In most bathrooms, the critical locations are easy to spot once you stop thinking about symmetry.

• At the shower entry: Balance can change quickly, especially with wet feet and a lip or channel underfoot.
• Beside the toilet: People need support here for controlled lowering and standing.
• Near the bath edge: If someone still uses a bath, the entry and exit point matters more than the longest empty wall.
• Along the main shower wall: A horizontal rail can steady movement while washing and turning.

Don't install a rail just because a blank wall is available. Install it where weight shifts.

Get the height right

Guesswork causes trouble, as longitudinal field data from Victoria found that horizontally mounted grab rails set at 830 to 900 mm above floor level correlated with a 25 to 30% reduction in near-fall incidents, while rails outside that range were associated with a 40 to 50% higher rate of awkward twisting or over-reaching movements, according to this guide to rail positioning and planning.

That lines up with what I've seen on site. Too low and people stoop to find the rail. Too high and the shoulder lifts, the elbow flares and the body rotates when it should stay square.

Use a tape measure and mark from the finished floor level, not the slab or subfloor. If the bathroom isn't fully tiled yet, account for screed, underlay and tile thickness before locking in the line.

A rail should meet the hand where the body wants support. The user shouldn't have to reach up, down or back for it.

Check clearance, approach and surrounding fixtures

A compliant rail also has to be usable. If it's jammed too close to a corner, mirror edge, shower screen bracket or vanity return, fingers can't wrap properly around it.

Focus on these planning checks:

1. Hand clearance from the wall
   Leave enough space for a full grip. If the rail sits too tight to the tile, it may look neat but it won't function properly.

2. Clear approach path
   Make sure the hand can reach the rail without bumping into a soap niche, mixer, glass panel or toilet roll holder.

3. Door and screen swing
   I've seen good rails ruined by a shower screen handle clashing with them on opening.

4. Body position at the point of use
   A rail beside a toilet should suit the user's natural standing path, not just the centreline of the pan.

Make it look intentional

This is the part most guides skip. A design-forward rail installation doesn't happen by accident.

Good visual integration often comes from small decisions:

• Align the rail with tile grout lines where possible.
• Match finishes carefully. Brushed stainless, matte black, brushed brass and powder-coated options can sit well in contemporary bathrooms if the rest of the room supports them.
• Use concealed flange covers if the product allows it.
• Line the rail with existing geometry such as vanity edges, recessed shelves or the horizontal line of feature tiles.

Slimline rails can look sharp in minimalist bathrooms, but only if they still meet the placement and clearance requirements. Don't downsize the fitting so far that it becomes harder to grip.

Gathering the Right Tools and Structural Fixings

The rail itself is only half the job. The fixing method is what decides whether it performs like safety equipment or fails like a cheap accessory.

Australian Standards require grab rails to support at least 1.1 kN, which is about 112 kg of force. Melbourne-based compliance officers also report that 30 to 40% of retrofitted rails in older homes lack proper stud anchorage and can fail at loads below 0.5 kN, which represents a fourfold reduction in safety. Those numbers are why I'm blunt about fixings. Standard plastic plugs in plasterboard are not a serious option for grab rail installation.

The tools that actually matter

You don't need a van full of gear, but you do need the right gear.

A basic setup usually includes:

• Electronic stud finder: For timber-framed walls, this is the first tool I'd buy.
• Tape measure and pencil: Mark accurately before you touch a drill.
• Laser level or quality spirit level: A crooked rail looks amateur and often signals rushed marking.
• Drill and the correct bits: Timber, tile and masonry all need different bits.
• Sealant gun with bathroom-grade silicone: Every penetration needs sealing.
• Driver bits or socket set: Depending on the fixing hardware used.

Fixing choice depends on the wall, not your preference

The wall tells you what you can do. A lot of DIY problems come from buying the rail first and trying to force one fixing method onto every surface.

Here's a simple guide.

What works in older Melbourne homes

Older homes are rarely straightforward. You might find plaster over timber, tile over patchwork repairs, old noggins in odd spots, or wall cavities altered during previous renovations.

That's why I tell people to confirm structure, not assume it. If the stud finder gives inconsistent readings, remove a fitting cover, inspect from an adjacent room, or use a small inspection point in a concealed area. A rail that looks tidy on the face tile can still be attached to rubbish behind it.

Site reality: The neatest bathroom surface can hide the worst substrate. Never judge fixing potential by the tile alone.

Don't confuse “can attach” with “safe to use”

Yes, there are situations where structural anchors help when a flange doesn't land perfectly over framing. But that doesn't mean every hollow wall anchor from the hardware aisle is suitable. The fixing has to suit the wall build-up, the substrate condition and the expected use.

If the rail is intended for balance support only, the demand is different from a rail used for daily transfers. The user matters. The wall matters. The fixing schedule matters.

The best-looking rail in the showroom becomes the worst choice if its flange pattern can't line up with safe structure. I'd rather change the rail model, or open a wall and add backing during a renovation, than pretend a weak fixing is “probably fine”.

Installation Techniques for Common Wall Types

Once the position is marked and the structure is confirmed, the installation has to suit the wall in front of you. That's where many DIY jobs go wrong. People use one method for every surface, then wonder why the tile cracks, the rail twists, or the fastener never bites properly.

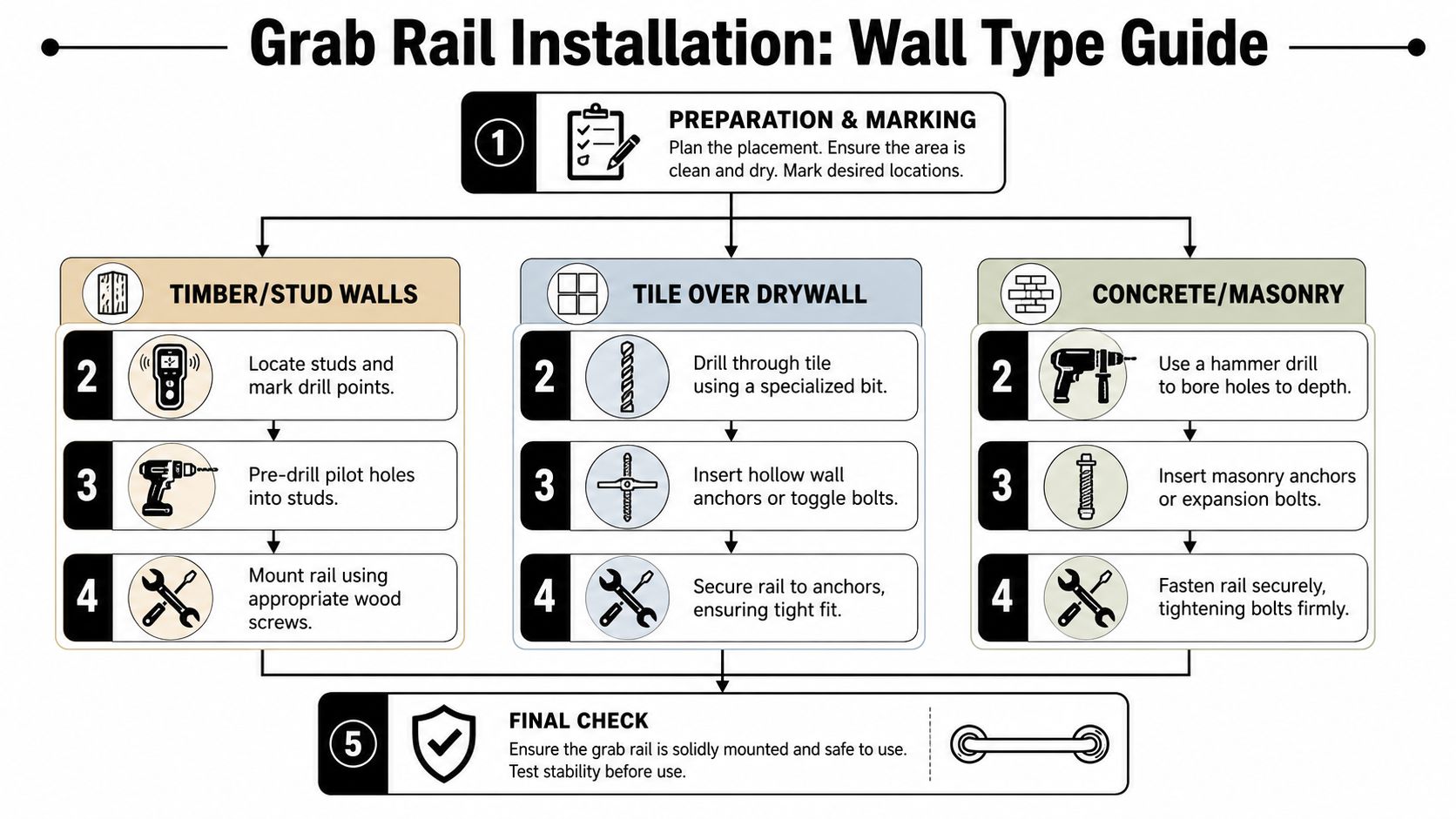

This visual guide helps map the basic pathways before you start drilling.

Timber stud walls

This is the cleanest install when the studs line up with the required rail location. It's also the result I trust most in a standard framed wall.

Mark the rail position first. Then find the stud centre, not just the stud edge. I usually confirm with a stud finder, then double-check by measuring from a known framing point if the room layout allows it. On old walls, verification matters.

For timber stud installation:

1. Mark the flange holes carefully with the rail held level in final position.
2. Pre-drill pilot holes so the screws track straight and reduce the chance of splitting.
3. Use suitable structural screws that engage solidly into timber.
4. Tighten evenly so the flange beds down without distorting.
5. Check for movement before fitting any cover plate.

If you're renovating and retiling at the same time, this is the point where planning helps most. Adding backing before the wall is sheeted gives you freedom to place the rail where it is needed. If your wall finishes are still in progress, this practical guide on how to retile a shower is useful because grab rail backing should be considered before the final tile layout is locked in.

Brick or masonry walls

Masonry can give a very solid result, but only if the wall is sound and the anchor type matches the substrate. Brick is not the same as old crumbling mortar, and not every bathroom wall that feels hard is worth drilling into.

The sequence is different from timber:

• Mark and level the rail.
• Drill with the correct masonry bit.
• Clear dust from the hole.
• Insert the anchor system properly.
• Tighten without overloading the fixing.

Avoid fixing into soft mortar joints if you can land into sound brick instead. Mortar can be inconsistent, especially in older properties. If the hole powders excessively or the anchor never firms up, stop and reassess.

Tiled walls

Patience separates a professional-looking result from an expensive mistake. Tiled walls crack when installers rush, use the wrong bit, or let the drill skate across the glaze.

Use masking tape if needed to stop the bit wandering, mark accurately, and start slow. A diamond-tipped tile bit is the usual choice for ceramic and porcelain. Don't hammer through the tile face. Let the bit cut. Once you're through the tile layer, adapt the drilling method to the substrate behind it.

Here's the practical order I follow on tiled walls:

• Confirm the substrate first. Tile over stud wall and tile over masonry need different fixing plans.
• Drill the tile slowly. Keep pressure controlled.
• Avoid edge drilling where possible. Tile edges and corners are less forgiving.
• Dry-fit before final tightening. Make sure the flange sits flat.
• Seal after fastening. Don't leave the penetrations exposed.

A lot of homeowners ask how to make rails look less clinical on tiled walls. The answer is usually alignment. Run the rail parallel with grout lines, centre it within a tile module when possible, and choose a finish that belongs with the tapware rather than fighting it. Slim-line profiles, concealed brackets and colour-matched finishes can absolutely work in a contemporary room, but placement still has to respect NCC and AS 1428.1 requirements. Many guides miss that design side altogether, which is why this planning resource on rails and layout is useful as a secondary reference when comparing installation approaches.

A short visual walkthrough can also help before you commit to the drilling sequence.

Getting the final fit right

Once the rail is fixed, don't stop at “it feels okay”. Grip it from the position the user will stand in. Apply pressure in the directions it will really be used. A rail beside a toilet gets loaded differently from one in a shower.

Then step back and look at it as part of the room. Is it level with the lines around it? Does it interfere with the shower screen, niche or mirror? Does it look integrated rather than improvised?

That last check matters. A proper grab rail installation should read as part of the bathroom, not a panic addition at the end.

Waterproofing and Final Finishing Touches

A rail can be structurally sound and still cause damage if the penetrations aren't sealed properly. Every hole through tile, grout or a finished wall surface creates a possible water entry point. In older bathrooms especially, small leaks around fittings can turn into soft framing, mould growth and repair work that costs far more than the rail ever did.

This is why I treat sealing as part of the installation, not as optional cleanup.

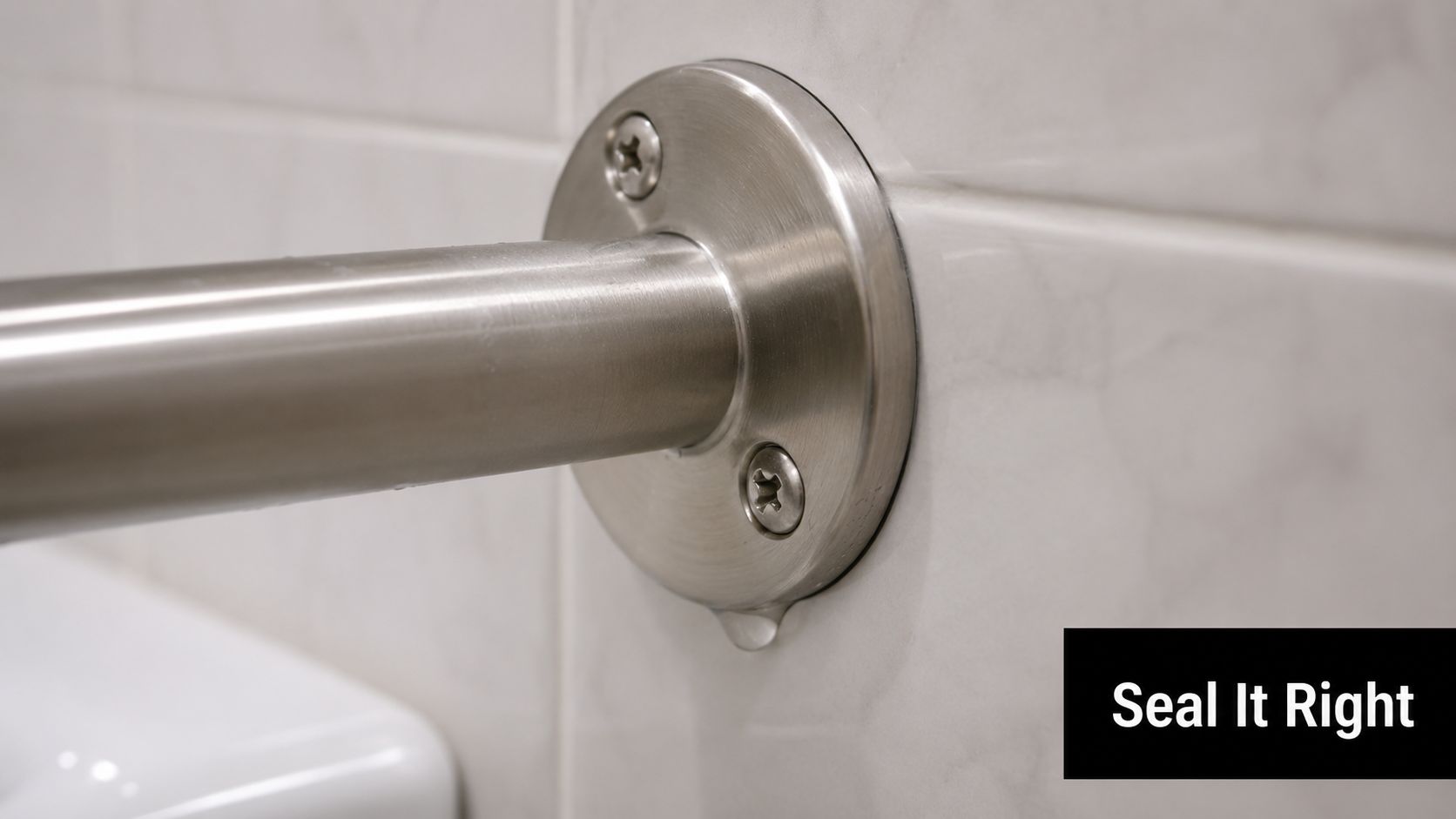

Seal every penetration properly

After the rail is fastened and checked, apply a quality bathroom-grade silicone around the flange where it meets the tile or wall surface. If the fixing method leaves exposed penetrations under cover plates, those need attention too.

The aim isn't a fat, messy bead. It's a neat, continuous seal that blocks moisture without looking rough.

Good practice usually means:

• Clean and dry the area first: Silicone won't bond well to dust or wet residue.
• Use mould-resistant bathroom silicone: General-purpose sealant isn't the right product here.
• Tool the bead neatly: A smooth finish looks better and seals better.
• Check the flange perimeter: Gaps at the bottom or sides can let moisture creep behind the fitting.

Don't ignore what's behind the tile

A lot of damage starts out invisible. Water gets behind the flange, tracks through a screw penetration, and sits where nobody sees it until movement appears in the wall or the silicone starts discolouring around the fitting.

If you want a broader understanding of how shower sealing systems work as a whole, this guide on how to waterproof your shower is a useful companion read. It helps homeowners understand why one missed detail around a penetration can undermine otherwise decent bathroom work.

A tidy bead of silicone is cheap insurance. Rebuilding a rotten wall section isn't.

If you're unsure how the existing bathroom membrane works, or whether a previous renovation handled penetrations correctly, it also helps to understand the role of a bathroom waterproofing membrane before adding new fittings through finished surfaces.

Finish matters too

The last touch is visual. Wipe away excess sealant, fit the flange covers neatly, and make sure the rail finish is clean. Fingerprints, chipped drill points and crooked cover plates make even a strong installation look second-rate.

A good final finish does two jobs. It protects the wall, and it keeps the rail looking intentional within the design.

Troubleshooting and When to Call the Professionals

Some grab rail installations go smoothly. Others go sideways fast.

The common warning signs are easy to recognise. A fixing spins and never tightens. The drill hole breaks out the tile edge. The stud finder gives conflicting readings. You remove a flange cover to inspect and discover the wall build-up isn't what you expected.

Problems you can sometimes solve

A few issues are manageable if you catch them early.

• The rail is slightly out of level: Remove it, remark the holes, and reset it. Don't accept a crooked finish because the cover plate hides part of it.
• The screw bites poorly in timber: Stop and verify you're in the stud centre rather than on the edge.
• The tile bit is skating: Re-mark the point, stabilise the bit, and slow down.
• There's minor flange gap on the tile face: Check whether debris, a proud screw head or an uneven tile is holding it off before tightening further.

Red flags that mean stop

Other situations aren't worth pushing through.

If you hit a pipe, suspect wiring, find crumbling substrate, or can't confirm structural backing, stop drilling.

That's the point where DIY confidence turns into avoidable damage. Hidden plumbing, damaged waterproofing, weak wall structure and non-compliant fixing details aren't small problems. They affect safety, liability and the long-term condition of the bathroom.

Call a professional when:

1. You can't verify safe anchorage
2. The wall structure is unknown or deteriorated
3. The bathroom is fully tiled with brittle or high-value finishes
4. The installation forms part of an accessible bathroom upgrade
5. You need backing, wall opening or remedial waterproofing

There's no shame in handing over a job that needs more than a drill and a level. A straightforward rail in a simple wall can suit a capable DIYer. A complex bathroom with tile, moisture exposure, awkward framing or accessibility requirements usually needs a certified trade and a proper compliance mindset.

If you want a grab rail installation that's structurally sound, properly waterproofed and designed to suit the rest of the bathroom, Western Bathroom Renovations can help. Their team handles Melbourne bathroom renovations from layout planning through to waterproofing, tiling and final fit-off, so safety features don't end up looking like afterthoughts.
