Small Bathroom Design Australia: Maximize Your Space

You’re probably dealing with one of two problems right now. Your bathroom is small and awkward, or it’s small, awkward, and starting to show its age. The door clips the vanity, the shower feels boxed in, storage is nowhere, and every idea online looks great until you try to fit it into a Melbourne terrace, apartment, or unit bathroom that was never generous to begin with.

That’s why small bathroom design australia isn’t really about decoration first. It’s about planning a room that works every day, complies with Victorian requirements, handles Melbourne moisture, and still looks clean and spacious when the job is finished. In compact bathrooms, a good design solves movement, drainage, waterproofing, storage, ventilation, and maintenance all at once.

Planning Your Small Bathroom Renovation

Most small bathroom mistakes happen before demolition starts. People choose tiles, tapware and colours first, then try to force them into a room that doesn’t have the clearance to use them properly. In a compact space, that approach usually leads to cramped movement, awkward door swings, and expensive changes once trades are already on site.

In Melbourne homes, that problem is common because many bathrooms are tight from the outset. In Australia, the smallest practical shower cubicle is 900x900mm, standard layouts need 600 to 700mm in front of toilets and vanities, and powder rooms in Melbourne can be as small as 1.2m x 1.5m according to Australian bathroom size guidance. That’s why the first job isn’t styling. It’s documenting the room properly.

What to measure before you choose anything

Take a full site measure and record more than wall length. You need wall-to-wall dimensions, ceiling height, window placement, nib walls, plumbing locations, floor waste position, electrical points, and where the door swings now. If there’s a bulkhead, note it. If the floor is out of level, note that too.

A simple sketch is enough if it’s accurate. Mark everything that can’t move easily and everything that can move but adds cost if relocated.

Use this checklist:

• Room size: Measure every wall, not just the longest points. Older homes are rarely square.
• Door behaviour: Check whether the swing blocks a vanity, toilet access, or towel storage.
• Plumbing positions: Toilet waste and shower waste locations often decide whether a layout is affordable.
• Window and light: Note sill height and opening direction because they affect mirrors, shower screens and ventilation.
• Power and lighting: Existing switch positions matter, especially if you want mirror lighting or heated accessories later.

Start with function, not finishes

A workable plan begins with who uses the room. A powder room has different needs from an ensuite. A family bathroom used by kids has different priorities from an investor renovation aimed at durability and quick turnover.

I always tell homeowners to rank these decisions early:

1. Bath or no bath
2. Walk-in shower or enclosed shower
3. Storage priority or open feel
4. Keep plumbing in place or rework layout
5. Standard hinged door or space-saving alternative

These choices affect everything after them. If you keep changing them during quoting, you’ll keep changing the budget.

Practical rule: If the room is small, draw the movement path first. Fixtures come second.

That one step stops a lot of bad decisions. A bathroom can look balanced on paper and still feel terrible if you have to sidestep the toilet to reach the shower or stand half-turned at the vanity.

Document the constraints clearly

Before you request prices, create a short brief. Include your measurements, photos from each corner, a note on what stays and what goes, and your must-haves. That gives designers and builders something concrete to price, and it reduces vague allowances that later become variations.

If you’re also thinking about resale, it helps to look at broader renovation thinking, not just bathroom styling. This guide to expert renovations to boost property value is useful because it frames upgrades around function and return, not just appearance.

For a more bathroom-specific checklist, this guide on how to plan a bathroom renovation gives a practical sequence to follow before you lock in materials.

Smart Layouts to Maximise Small Spaces

A small bathroom usually fails in one of two ways. The fittings are too large for the room, or the clear path through the room gets pinched at the vanity, toilet, or shower entry. In Melbourne homes, I see this often in older terraces, post-war brick units, and apartment ensuites where the footprint looks workable on paper but feels cramped once the door opens.

The right layout depends on the room shape, the position of the waste lines, and whether you are renovating a main bathroom, ensuite, or single bathroom for the whole household. In many Melbourne renovations, keeping the toilet and shower on the same service wall saves money. Shifting them can improve the plan, but it also adds plumbing labour, floor work, and often extra patching. A better layout is only worth it if the gain in usable space is real.

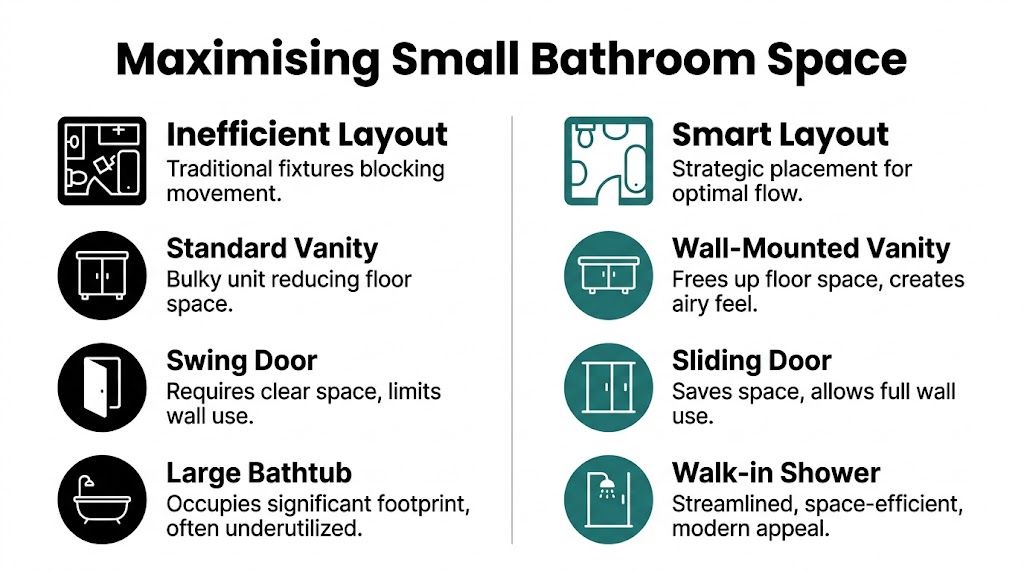

A quick visual comparison helps.

The wet room option for tight footprints

A wet room can work well in a compact bathroom, especially where a framed shower enclosure would break up the room and crowd the entry. The main advantage is not style. It is floor continuity, cleaner sightlines, and fewer hard edges to work around.

In Melbourne, this option only works if the floor can be set up properly for falls to waste and the waterproofing is done to AS 3740 requirements. That usually means more than swapping screens and calling it a wet room. The substrate, puddle flange detail, set-down or floor build-up, and drain location all need to line up from the start. In older homes with uneven subfloors, that work can add cost quickly.

A wet room suits small footprints when:

• the shower area can be graded correctly without causing ponding outside the wet zone
• ventilation is strong enough to clear moisture in winter, when Melbourne bathrooms stay damp for longer
• the screen is minimal and placed to control overspray
• the vanity and storage stay off the floor where possible

The common mistake is the half-wet-room layout. A room with poor falls, no real splash control, and weak exhaust ends up colder, wetter, and harder to live with. It also puts more pressure on the waterproofing and silicone joints over time.

A lot of homeowners find it easier to understand this when they can see examples in motion. This short walkthrough is useful:

The shower-over-bath for family use

This layout still earns its place. In a one-bathroom home with young children, a separate shower and bath often will not fit without making the rest of the room awkward. A shower over bath keeps bathing function without forcing a major increase in floor area.

The trade-off is access and visual openness. It is less convenient for older occupants, and it will never feel as open as a walk-in shower. But if the household needs a bath, it is usually better to do this layout neatly than to squeeze in too many fixtures and lose daily usability.

What helps:

• a straight bath, not an oversized feature bath
• a simple fixed screen or tight-fitting bath screen
• full-height wall tiling in the splash zone
• storage moved upward into mirrored cabinets or recessed niches

What hurts:

• a deep vanity opposite the bath
• decorative bath hob details that eat floor width
• towel rails or hooks placed where the screen or door needs to swing

The galley layout for long, narrow rooms

Long, narrow bathrooms are common in Melbourne period homes and unit blocks. In those rooms, a galley layout usually gives the cleanest circulation. Put the fixtures in sequence with the room shape. Do not force them across it.

In this layout, fixture depth is critical. A vanity that projects too far makes the centre passage feel tight every day. A bulky toilet pan steals knee room. A heavy framed shower at the end of the room shortens the sightline and makes the bathroom feel smaller than it is.

The layouts that work best usually include:

• Wall-hung vanity: exposes more floor and makes cleaning easier
• Compact wall-faced or wall-hung toilet: reduces projection into the walkway
• Clear shower screen: keeps the far wall visible
• Recessed niche or shaving cabinet: adds storage without thickening the room

Door planning matters here too. If the existing hinged door collides with the vanity or blocks the towel rail, changing to a cavity slider or an outswing door can improve the room before any fixture changes are made. That choice needs to be checked early, because cavity sliders affect wall framing and switch locations.

For compact-room examples that match common renovation scenarios, this gallery of small bathroom layout ideas for narrow and tight spaces is useful to compare against your own floor plan.

What works and what doesn’t

Good small-bathroom layouts are usually quiet. Nothing sticks out too far, nothing blocks the path, and every fitting earns its place.

The aim is usable space, not empty space. A small bathroom should feel easy to move through on a cold Melbourne morning, with steam on the mirror and two people trying to use it at once. If the layout handles that, the renovation is doing its job.

Choosing Fixtures and Finishes for Australian Homes

Once the layout is right, finishes either support it or undo it. In a small bathroom, the wrong vanity depth, tile size, mirror proportion, or cheap fitting can make a smart plan feel crowded and tired within months. Therefore, quality matters. Not because everything has to be expensive, but because low-grade finishes in wet areas usually show their weakness early.

The broader market reflects that shift. The Australian bathroom fittings market is projected to reach USD 790.20 million by 2032, and 2026 trends favour wellness-focused designs, large-format tiles, and curved floating vanities in powder rooms and ensuites averaging 1.8 to 5 sqm, according to Australian bathroom fittings market projections. That lines up with what proves effective in compact rooms. Fewer visual breaks, softer forms, and fixtures scaled to the space.

Spend where failure is expensive

There are parts of a bathroom where saving money rarely pays off. Tapware, waterproof-adjacent materials, shower screens, and tile installation quality all affect maintenance later. Cheap mixers often age poorly. Low-grade cabinetry struggles with steam. Thin mirror finishes and poor lighting placements date a bathroom quickly.

If the budget is tight, cut back on complexity, not on the parts that are hard to replace. It’s smarter to choose a simpler porcelain tile and reliable tapware than a fashion finish with weak internals.

A good selection order is:

1. Vanity size and type
2. Shower screen style
3. Tile format and slip suitability
4. Tapware finish
5. Mirror and lighting
6. Storage details

That order protects function first.

Finishes that make small rooms feel better

Large-format tiles help because they reduce visual interruption. Curved vanity edges can soften tight corners. A full-height mirror lifts the room more effectively than decorative fragments. Natural tones also tend to wear better over time than stark trend-driven contrasts.

A few practical calls I’d make in most Melbourne bathrooms:

• Choose porcelain over fussier surfaces if you want durability and easier cleaning.
• Use large-format wall tiles where the substrate allows it, because fewer grout lines keep the room calmer.
• Pick a floating vanity if the layout can take it. The visible floor makes the room feel less boxed in.
• Use drawers, not just cupboards. In small rooms, accessible storage matters more than raw storage volume.
• Keep the palette restrained. Too many tile changes shrink the room visually.

Trade view: In compact bathrooms, one clean material decision usually looks stronger than three feature ideas competing for attention.

Lighting and ventilation are part of the finish

People often treat lighting and extraction as technical extras. They’re not. They shape how the room looks and how long it stays in good condition. Bad lighting creates shadows at the mirror and makes the room feel smaller. Weak extraction leaves moisture sitting on paint, grout and cabinetry.

In Melbourne, I’d much rather see a well-lit mirror, reliable exhaust, and durable joinery than a decorative niche lit like a showroom but a room that stays damp after every shower.

If you’re weighing palette and finish combinations, these bathroom colour design ideas are a useful starting point for narrowing the look without overcomplicating the room.

Navigating Melbourne Building Codes and Waterproofing

This is the part generic design articles usually skim over, and it’s the part that causes the most expensive problems. In Melbourne, a bathroom renovation isn’t just a style project. It has to satisfy the relevant code requirements, manage moisture correctly, and be built in a sequence that protects the structure behind the tiles.

Victoria has local compliance expectations that catch people out, especially in small bathrooms where there’s less tolerance for poor planning. According to Victorian small renovation compliance data, 28% of small reno permits in 2025 were rejected because of non-compliant items such as shower hob heights or inadequate ventilation, and ventilation requires a minimum of 5 air changes per hour under local NCC amendments.

Why waterproofing is not a DIY area

A bathroom can look complete and still be wrong behind the tile. Waterproofing failures often stay hidden until the damage has moved into skirting, adjoining rooms, or lower levels. By then, the repair is rarely limited to replacing a few tiles.

AS 3740 matters because it governs how domestic wet areas are waterproofed. In practical terms, that means the substrate, junctions, penetrations, shower area treatment, and membrane application all have to be handled properly. The membrane is only one part of the system. Falls, drainage setup, and sequencing matter just as much.

The failures I see most often are:

• Poor floor preparation: water doesn’t move cleanly to the waste
• Bad junction treatment: weak points around wall-to-floor changes
• Rushed sequencing: tiling starts before the wet area is properly ready
• Wrong product pairing: adhesives, membranes and substrates not treated as one system

Ventilation matters more in Melbourne

Melbourne’s variable weather means bathrooms can stay damp longer, especially in homes with limited natural airflow. A beautiful renovation won’t stay beautiful if steam lingers, silicone blackens, and paint around the ceiling line starts to fail.

If your bathroom has no window, extraction design becomes even more important. This guide on proper ventilation in bathrooms is useful for understanding why moisture control affects mould, surfaces, and cleaning load long after the renovation is done.

Get the exhaust strategy right before plaster, tile and paint go in. Retrofitting a bad ventilation plan is far harder than designing a good one from the start.

The compliance issues that cost money

Small bathrooms are less forgiving because the clearances are tighter and every fitting affects another one. A screen in the wrong position can create access trouble. A hob built incorrectly can trigger rework. Lighting and power points near wet zones have to be planned with the wet area in mind, not squeezed in later.

The practical lesson is simple. Design, code compliance, and waterproofing can’t be separated. If the layout ignores ventilation, the room won’t perform well. If the tiling plan ignores falls, the shower won’t drain properly. If the waterproofing is treated as a box-ticking step, the renovation is carrying risk from day one.

Setting a Realistic Budget and Timeline in AUD

A small bathroom can still consume a large budget if the scope is not defined early. In Melbourne, two projects with the same floor area can end up thousands apart once you account for access, apartment rules, waste removal, plumbing changes, tile choice, and the condition of the walls and floor after demolition.

For rental properties, the numbers need to work harder. The goal is usually durable finishes, quick turnaround, and fewer call-backs for failed grout, swollen cabinetry, or cheap tapware. Owners who chase the lowest quote often pay again in maintenance.

Budget tiers that match real projects

These are planning ranges for Melbourne jobs, not fixed quotes.

The cheapest path is usually keeping the toilet, shower waste, and vanity services close to where they are now. Once drainage moves, costs rise quickly. In older Melbourne homes, that can also expose rotten framing, out-of-level floors, or wall sheeting that needs replacing before tiling starts.

Mid-range is where many small bathrooms sit. It usually covers proper prep, compliant waterproofing to AS 3740 requirements, decent fittings, and enough labour to finish the room properly instead of cutting corners where you cannot see them later.

Where the money usually goes

Quotes are often hard to compare because builders group costs differently, but the pressure points are consistent:

• Demolition and disposal: strip-out, skip bins, cartage, and labour
• Plumbing: new valves, drainage adjustments, rough-in and fit-off
• Electrical: lights, fan, GPOs where permitted, switches, heated rails if included
• Waterproofing and substrate repairs: especially common in older bathrooms
• Tiling: labour, screeding, trims, grout, and tile wastage
• Fixtures and fittings: toilet, vanity, basin, tapware, shower set, mirror
• Joinery and glazing: custom vanities and made-to-measure screens add cost fast
• Painting and finishing: ceiling work, trims, silicone, final detailing

There is a practical trade-off here. Saving money by choosing a standard vanity or a simpler screen is usually low risk. Saving money by reducing prep, waterproofing scope, or the quality of the installer usually is not.

Workable timelines

Small rooms still take time because the sequence cannot be rushed. Waterproofing needs the right substrate and curing time. Tiling needs set-out and falls checked properly. Custom glazing and joinery can also hold up fit-off if they were not ordered early.

A typical program looks like this:

1. Measure, site check, and final selections
2. Demolition and waste removal
3. Plumbing and electrical rough-in
4. Carpentry and substrate preparation
5. Waterproofing
6. Tiling and grouting
7. Cabinetry, screen, and fixture installation
8. Final plumbing and electrical fit-off
9. Defects check and clean-down

For a standard small bathroom, allow a few working weeks on site, sometimes longer if custom products are involved or body corporate access is restricted. In Melbourne apartments, I also allow time for lift bookings, loading bay limits, and waste transfer. Those details sound minor until they stall a job for days.

The smoothest projects are usually the ones with every fitting selected before demolition starts.

How to read quotes properly

Read past the total price. Check what has been allowed for tile preparation, waterproofing extent, removal of rubble, supply of fixtures, and whether permit or compliance-related items sit inside or outside the contract. Victorian jobs can also involve different documentation expectations depending on the building and scope, so vague wording is a risk.

One factual option in Melbourne is Western Bathroom Renovations, which handles planning, demolition, waterproofing, tiling, and fit-off as a managed renovation service. Whether you use them or another contractor, ask who is coordinating trades, what happens if damaged substrate is uncovered, how variations are costed, and what product allowances have been assumed. That is where budget blowouts usually begin.

Inspiring Melbourne Case Studies and Your Final Checklist

The most useful examples are the ordinary ones. Not showroom bathrooms with endless space, but rooms that started out narrow, dark, and awkward, then got solved properly.

Inner-city apartment ensuite

A typical apartment ensuite usually has one major issue. Too many elements packed into a footprint that can’t support them. In one common scenario, the original room had a bulky vanity, a boxed shower, and almost no storage. The fix wasn’t decorative. It was removing visual weight.

The better outcome came from switching to a floating vanity, simplifying the shower screen, using a larger mirror, and reducing competing finishes. The room felt calmer because the plan stopped interrupting itself. It also became easier to clean, a factor often underestimated for tight ensuites.

Narrow terrace powder room

A terrace powder room often has a different problem. Width. The room may be long enough, but every item projects too far into circulation. That’s where compact fixture depth, wall-mounted elements, and careful door planning matter most.

In this type of room, the difference between a serviceable result and a frustrating one often comes down to restraint. Fewer materials, fewer protrusions, and storage that’s integrated instead of added afterward.

Small bathrooms improve when every element earns its place.

Final checklist before you commit

Use this list before signing off on your renovation:

• Measure properly: include doors, windows, nibs, bulkheads, wastes and ceiling height.
• Lock the layout early: changing the plan mid-job usually adds cost and delay.
• Confirm compliance path: especially waterproofing, ventilation and wet area detailing.
• Choose fixtures by size first: then by style.
• Keep the palette controlled: too many feature ideas make small rooms feel busier.
• Check quote assumptions: inclusions, exclusions and product allowances should be clear.
• Ask about sequencing: know who handles demolition through final fit-off.
• Plan for cleaning and use: not just appearance on handover day.

If a design decision makes the room harder to use or harder to maintain, it usually isn’t the right decision for a small bathroom.

Frequently Asked Questions About Small Bathroom Renovations

Do I need a permit for a small bathroom renovation in Melbourne

Sometimes yes, sometimes no. It depends on the scope. Straight replacement of finishes and fixtures may be simpler than structural changes, altered plumbing arrangements, or work that triggers permit requirements. The safest move is to confirm early with your builder or relevant authority rather than assume a small room means no approval issues.

Can I do my own waterproofing

That’s not a risk worth taking. Bathrooms fail from hidden defects, not just visible ones. If the waterproofing system is wrong, the leak may show up outside the bathroom before you realise there’s a problem. In Melbourne conditions, proper wet area preparation and application matter too much to treat as a DIY shortcut.

What’s the best layout for a very small bathroom

There isn’t one universal answer. Long narrow rooms often suit a galley layout. Tight full bathrooms can suit a wet room approach if drainage and waterproofing are designed properly. Family homes may still need a shower-over-bath if bathing function matters more than openness.

How do I make a bathroom without a window work better

Prioritise extraction, lighting and moisture-resistant finishes. A bathroom without a window can still perform well, but only if the fan is adequate, the light is well planned, and the materials can handle constant steam exposure.

Is a wall-hung vanity worth it

In most small bathrooms, yes. The extra visible floor helps the room feel less cramped, and cleaning underneath is easier. The room won’t become bigger, but it will usually feel more usable and less cluttered.
